Drag vs Downforce in Formula 1

The balance between drag and downforce is one of the most fundamental aerodynamic compromises in Formula 1. Every modern F1 car is designed around maximizing aerodynamic performance while minimizing the speed penalty caused by airflow resistance.

This tradeoff influences nearly every aspect of Formula 1 engineering:

• rear wing configuration,
• floor development,
• ride height,
• suspension setup,
• tire management,
• and even race strategy.

A car optimized for maximum downforce will generally:

• corner faster,
• brake more effectively,
• and generate more tire grip.

However, that same car will also typically produce:

• more aerodynamic drag,
• lower straight-line speed,
• and reduced efficiency on long straights.

Conversely, reducing drag improves top speed but sacrifices aerodynamic grip and cornering stability.

Throughout Formula 1 history, teams have constantly searched for ways to improve aerodynamic efficiency — generating more downforce with less drag. The 2022–2025 ground-effect regulations accelerated this philosophy further by shifting aerodynamic performance underneath the car through venturi tunnels and underfloor downforce generation.

Today, understanding drag vs downforce means understanding the central aerodynamic compromise that defines Formula 1 performance.

Key Takeaways

• Downforce improves grip, stability, and cornering speed.
• Drag reduces straight-line speed and aerodynamic efficiency.
• Increasing downforce almost always increases drag.
• Different circuits require different aerodynamic compromises.
• Ground-effect floors improved aerodynamic efficiency during the 2022–2025 era.
• DRS partially offsets drag penalties on straights.
• Teams constantly optimize aero balance depending on track layout and tire behavior.

What Is Downforce?

Downforce is the aerodynamic force pushing a Formula 1 car toward the track surface.

Unlike mechanical grip generated through suspension and tires alone, downforce increases with speed because it depends on airflow interaction.

How Downforce Is Generated

Modern Formula 1 cars generate downforce through:

• front wings,
• rear wings,
• floors,
• diffusers,
• beam wings,
• and underbody airflow structures.

As airflow moves around aerodynamic surfaces:

• pressure differences develop,
• airflow accelerates,
• and vertical aerodynamic load is generated.

This increases tire loading and improves grip.

Why Downforce Matters

Higher downforce improves:

• cornering speed,
• braking stability,
• traction,
• tire consistency,
• aerodynamic balance.

At high-speed circuits, Formula 1 cars can generate enough aerodynamic load to theoretically drive upside down under ideal conditions.

Downforce and Tire Grip

More downforce pushes tires harder into the track surface without significantly increasing vehicle mass.

This allows:

• higher lateral grip,
• stronger braking performance,
• improved directional stability.

However, generating this aerodynamic load comes with a cost:
drag.

What Is Aerodynamic Drag?

Aerodynamic drag is the resistance a car experiences while moving through air.

As airflow interacts with the car:

• turbulence forms,
• pressure resistance increases,
• and energy is lost overcoming airflow resistance.

Why Drag Reduces Performance

Higher drag reduces:

• top speed,
• acceleration efficiency,
• energy deployment efficiency,
• fuel efficiency.

On circuits with long straights, excessive drag can significantly hurt lap time.

Main Sources of Drag

The largest drag-producing components generally include:

• rear wings,
• front wings,
• exposed tire wake,
• cooling airflow,
• upper aerodynamic structures.

During the ground-effect era, teams increasingly attempted to shift aerodynamic load toward the floor because underfloor downforce produces less drag than large wing angles.

Drag Sources vs Downforce Sources

Why Drag and Downforce Are Linked

Generating downforce requires manipulating airflow aggressively.

That airflow manipulation inevitably increases drag.

The Aerodynamic Compromise

When wings operate at steeper angles:

• airflow deflection increases,
• downforce rises,
• drag also rises.

Reducing wing angle decreases drag but sacrifices grip and stability.

This creates the central Formula 1 aerodynamic compromise:

• maximize cornering speed,
• while minimizing straight-line speed losses.

Aero Efficiency

The ideal aerodynamic setup produces:

• large downforce,
• minimal drag.

This ratio is often called aerodynamic efficiency.

Teams spend enormous development resources improving:

• airflow quality,
• underfloor performance,
• diffuser efficiency,
• and drag reduction techniques.

High Downforce vs Low Downforce Setups

Formula 1 setup philosophy changes dramatically depending on circuit characteristics.

High Downforce Setup

High-downforce configurations prioritize:

• cornering grip,
• braking stability,
• medium/high-speed performance.

Teams typically use:

• larger rear wings,
• steeper wing angles,
• more aggressive aerodynamic loading.

This setup works best at circuits such as:

• Monaco,
• Hungary,
• Singapore.

Low Downforce Setup

Low-downforce configurations prioritize:

• top speed,
• straight-line efficiency,
• drag reduction.

Teams reduce aerodynamic load through:

• trimmed rear wings,
• flatter wing angles,
• lower drag bodywork.

This setup is ideal for:

• Monza,
• Las Vegas,
• Spa low-drag sectors.

High vs Low Downforce Setups

Why Ground Effect Changed the Drag vs Downforce Tradeoff

The 2022 regulations fundamentally changed aerodynamic efficiency philosophy.

Underfloor Downforce Is More Efficient

Ground-effect floors generate:

• large downforce,
• relatively low drag,
• cleaner airflow structures.

This allowed teams to produce:

• stronger cornering grip,
• without proportionally increasing drag levels.

Venturi Tunnel Efficiency

Venturi tunnels accelerated airflow underneath the car, generating low pressure more efficiently than relying solely on large wings.

This shifted aerodynamic development toward:

• floor optimization,
• ride-height management,
• floor sealing,
• diffuser extraction.

For a deeper explanation, see:

• Ground Effect Explained in F1 (2022–2025)
• F1 Floors Explained (2022–2025)

How Teams Balance Aero Efficiency

Modern Formula 1 setup optimization revolves around balancing aerodynamic efficiency.

Rear Wing Choices

Rear wing angle strongly affects:

• drag,
• top speed,
• rear stability,
• DRS effectiveness.

Teams often introduce:

• circuit-specific rear wings,
• trimmed wing profiles,
• low-drag beam wings.

Ride Height Effects

Ride height affects:

• floor efficiency,
• diffuser performance,
• drag generation,
• underfloor airflow quality.

Ground-effect cars became extremely sensitive to ride-height changes because floor performance depended heavily on airflow stability.

Beam Wings and Floor Efficiency

Beam wings help:

• stabilize diffuser airflow,
• improve rear aerodynamic consistency,
• increase underfloor extraction.

However, they also introduce drag.

This created another aerodynamic compromise teams constantly optimized depending on circuit characteristics.

Drag Reduction Systems (DRS)

DRS was introduced to reduce the overtaking difficulty caused by aerodynamic drag penalties.

How DRS Works

When activated:

• the rear wing flap opens,
• drag decreases,
• top speed increases.

This helps offset the disadvantage of running higher downforce setups.

Why DRS Matters

Without DRS:

• teams might prioritize lower drag excessively,
• reducing overall cornering performance.

DRS allows teams to:

• run more downforce,
• while recovering straight-line performance during overtaking opportunities.

Drag vs Downforce and Tire Management

Aerodynamic setup also strongly affects tire behavior.

High Downforce and Tire Stability

Higher downforce generally:

• stabilizes the car,
• reduces sliding,
• improves tire consistency.

This can help preserve:

• rear tire temperatures,
• tire degradation,
• traction stability.

Low Downforce Risks

Low-downforce setups often increase:

• tire sliding,
• overheating,
• instability in long corners.

This can hurt:

• race pace,
• tire lifespan,
• driver confidence.

Which Teams Mastered Aero Efficiency Best?

Red Bull

Red Bull consistently demonstrated exceptional aerodynamic efficiency during the ground-effect era.

The team’s cars combined:

• strong cornering performance,
• high top speed,
• low drag,
• stable aerodynamic balance.

This efficiency advantage became one of Red Bull’s defining competitive strengths.

McLaren

McLaren made major aerodynamic gains through:

• floor optimization,
• improved airflow stability,
• more efficient aerodynamic loading.

By 2025, the team had become one of the strongest high-speed aerodynamic performers.

Ferrari

Ferrari often pursued aggressive downforce generation but occasionally struggled balancing:

• tire degradation,
• drag efficiency,
• and aerodynamic consistency.

Mercedes

Mercedes frequently experimented with:

• ride-height philosophy,
• rear wing balance,
• aerodynamic setup direction.

The team’s ground-effect adaptation initially suffered from greater setup sensitivity than some rivals.

How Drag vs Downforce Changes by Circuit

Different circuits demand very different aerodynamic compromises.

Monaco

Monaco prioritizes:

• maximum downforce,
• low-speed grip,
• traction,
• braking stability.

Top speed matters relatively little.

Monza

Monza prioritizes:

• minimum drag,
• straight-line speed,
• reduced wing angle.

Teams often run extremely trimmed rear wings.

Spa-Francorchamps

Spa requires:

• balanced efficiency,
• low drag for Sector 1,
• enough downforce for high-speed corners.

Las Vegas

Las Vegas strongly rewards:

• straight-line speed,
• drag reduction,
• aerodynamic efficiency.

Silverstone

Silverstone rewards:

• high-speed aerodynamic stability,
• efficient downforce generation,
• strong aero balance.

Circuit Aero Philosophy Comparison

Drag vs Downforce in the 2026 Regulations

The 2026 regulations continue Formula 1’s push toward aerodynamic efficiency.

Active Aerodynamics

Future regulations introduce:

• movable aerodynamic surfaces,
• active drag reduction modes,
• dynamic aerodynamic balancing.

This changes how teams approach the traditional drag vs downforce compromise.

Efficiency-Focused Philosophy

The FIA increasingly prioritizes:

• reduced drag,
• hybrid energy efficiency,
• sustainable performance,
• overtaking quality.

Instead of relying only on static aerodynamic compromises, future cars dynamically adapt aerodynamic configuration depending on:

• cornering,
• straight-line operation,
• energy deployment.

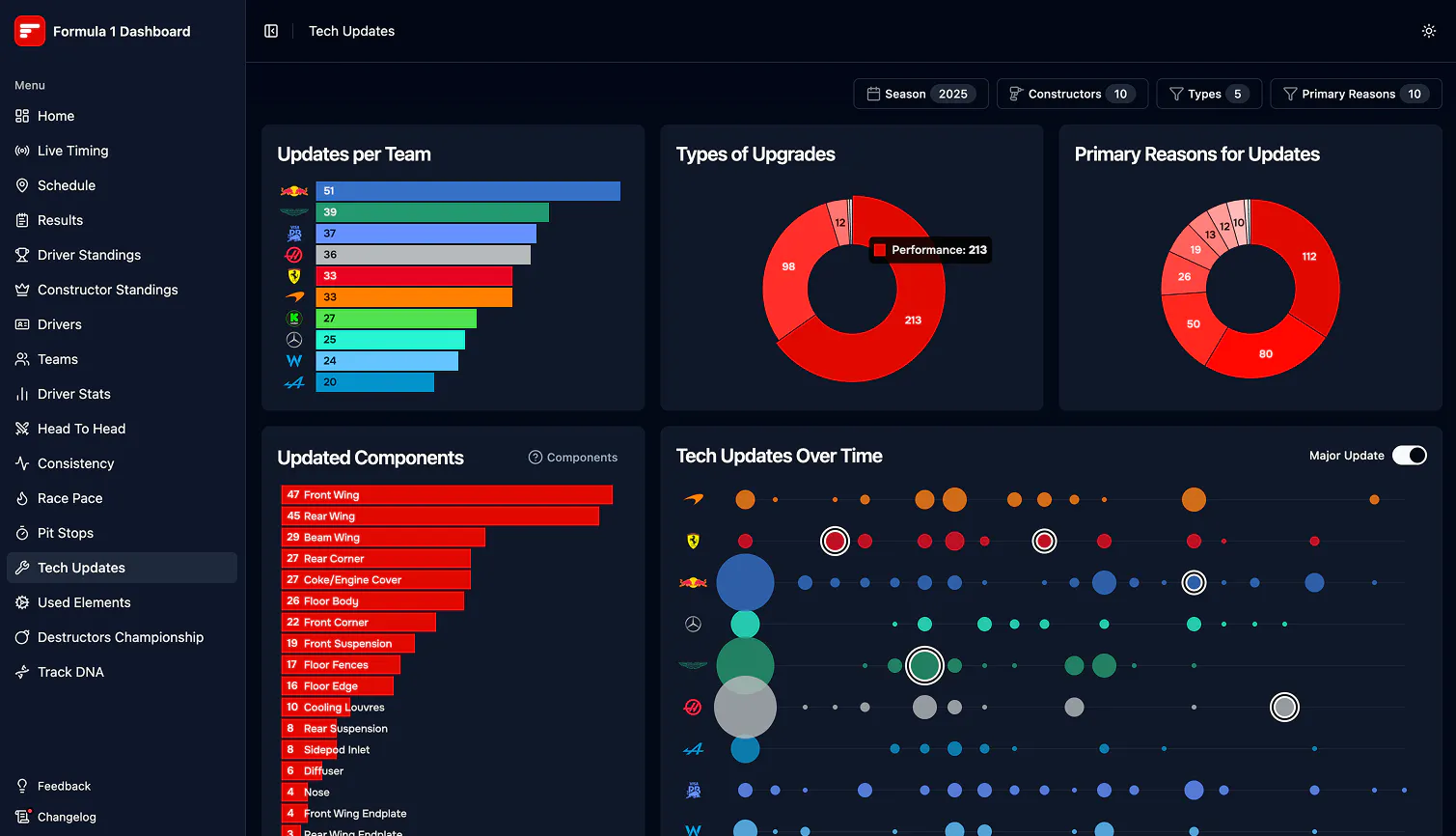

Related Data & Technical Analysis

Track aerodynamic developments and upgrade trends throughout the season.

Related Articles

Conclusion

The balance between drag and downforce remains the central aerodynamic compromise in Formula 1.

Every aerodynamic decision — from rear wing angle to floor geometry — ultimately revolves around balancing:

• cornering grip,
• straight-line speed,
• aerodynamic stability,
• and energy efficiency.

The ground-effect era significantly improved aerodynamic efficiency by shifting performance underneath the car, but the underlying tradeoff never disappeared. Teams still continuously optimize aerodynamic balance depending on:

• circuit layout,
• tire behavior,
• setup philosophy,
• and race conditions.

As Formula 1 moves toward active aerodynamics and greater energy efficiency in 2026, the relationship between drag and downforce will continue evolving — but it will remain one of the most fundamental engineering principles defining modern Formula 1 performance.
