F1 Car Parts Explained: Every Component Breakdown

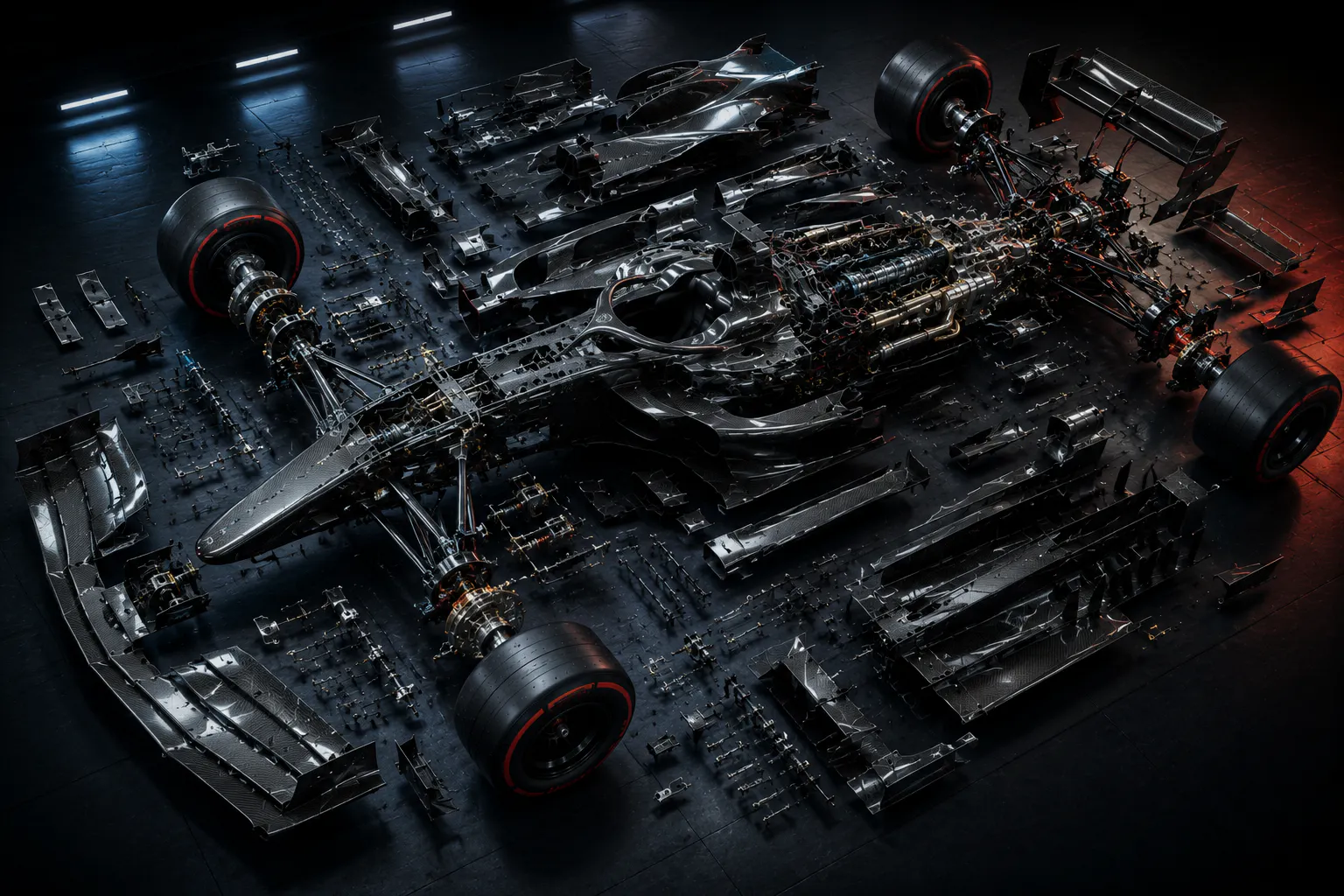

Formula 1 is the pinnacle of motorsport, a thrilling blend of human skill and cutting-edge engineering. Far from being simple race cars, modern F1 machines are incredibly complex technological marvels, each comprising approximately 14,500 individual, bespoke components. Every element is meticulously designed and crafted to extract every fraction of a second, pushing the boundaries of speed, efficiency, and safety.

So, what makes these incredible machines tick in the current era? Let's dissect the key components that define a Formula 1 car today, optimized for speed, cornering, and the ultimate racing spectacle.

F1 Technical Quick Reference & FAQ

Short on time? Here are the direct answers to the most common technical questions regarding the anatomy and engineering of modern Formula 1 cars.

What are the primary materials used to make F1 cars?

Formula 1 cars are constructed using high-performance materials including Reinforced Carbon Fiber (for the chassis and bodywork), Titanium (for the Halo and safety structures), and Kevlar. Specialized superalloys like Inconel are used for exhausts to withstand extreme heat.

Which component recovers energy under braking?

The MGU-K (Motor Generator Unit - Kinetic) is responsible for recovering energy during braking. It converts kinetic energy into electricity, which is stored in the Energy Store (battery) to provide a power boost of approximately 160 hp.

Why are suspension dampers critical to F1 performance?

Suspension dampers manage the speed of suspension movement. This is critical because it ensures the tires maintain constant contact with the track, maximizing mechanical grip and protecting the car’s aerodynamic platform from instability.

How many parts are in an F1 car?

A modern F1 car is made up of approximately 14,500 bespoke components, designed with a level of precision that exceeds even aerospace standards.

What is a "Beam Wing" in F1?

The Beam Wing is a small aerodynamic element located beneath the main rear wing and above the diffuser. It acts as a bridge, helping to "pull" air out from the diffuser and enhancing the car's overall ground-effect downforce.

What is the difference between MGU-H and MGU-K?

The MGU-H (Heat) recovers energy from the turbocharger's exhaust gases, while the MGU-K (Kinetic) recovers energy from the braking system. The MGU-H is unique because it can also spin the turbocharger to eliminate turbo lag instantly.

What is the "Anatomy" of F1 downforce?

The anatomy of a car's grip comes from three main areas: the Front Wing (directs airflow), the Floor Body and Diffuser (creates 60% of downforce via ground effect), and the Rear Wing (provides stability and DRS functionality).

1. The Monocoque: The Unbreakable Core

At the heart of every F1 car is the monocoque, often referred to as the "survival cell." This single, incredibly strong, and rigid structure forms the cockpit and the primary safety cell for the driver.

Material Science: What are F1 cars made of?

The anatomy of a Formula 1 car relies on advanced material science to balance extreme strength with minimal weight. While the chassis looks like one solid piece, it is a mosaic of high-tech composites and aerospace alloys.

Advanced Composites and Sustainability

The monocoque is constructed primarily from layers of reinforced carbon fiber, often bonded with resin in an autoclave. In 2025, teams like Mercedes are pioneering the use of innovative sustainable carbon fiber composites (such as flax-based fibers) to reduce the car's carbon footprint without compromising safety.

Driver Protection and the Survival Cell

Designed to absorb immense impact forces, the monocoque is the driver's last line of defense. It houses the driver's seat (custom-molded to each pilot), the detachable steering wheel, and a complex network of wires and sensors, all encased within this "unbreakable" shell.

2. Aerodynamics: The Anatomy of Speed

Aerodynamics is the single most critical performance differentiator in modern Formula 1. To understand the anatomy of an F1 car, you must look at how every surface is sculpted to generate massive downforce while minimizing drag.

The Front End (Air Entry)

• Front Wing & Endplates: As the first point of contact, this complex multi-element structure "conditions" the air. Its design, including the Front Wing Flap and Front Wing Endplate, directs air around the tires and toward the floor, influencing the overall aerodynamic balance.
• Nose Cone: Attaching directly to the wing assembly, the nose serves as a vital aerodynamic splitter while housing the front crash structure.

The Core & Underbody (The Powerhouse)

• Floor Body and Diffuser: These are the most powerful aerodynamic elements of the car's anatomy. Working together, they create a low-pressure area beneath the car (ground effect) that sucks the car to the track, contributing up to 60% of total downforce with relatively low drag.
• Floor Fences & Edges: The Floor Edge is meticulously optimized to "seal" the low pressure under the car, while Floor Fences strategically guide airflow within the underbody to prevent turbulence.
• Sidepods & Inlets: These distinctive structures house the cooling systems. Their shape is crucial for managing airflow toward the back of the f1 car and controlling the "wake" generated by the front wheels.
• Central Air Intake: Positioned above the driver's head (the "airbox"), this feeds the internal combustion engine and provides vital cooling to the power unit.

The Rear Section (Stability & Overtaking)

• Rear Wing & Endplates: Crucial for stability and traction in high-speed corners, the rear wing generates significant downforce at the back of the car.
• Drag Reduction System (DRS): A driver-adjustable flap on the rear wing that reduces drag to gain top speed on straights, promoting overtaking.
• Beam Wing: Located beneath the main rear wing, the Beam Wing works in conjunction with the diffuser to enhance the ground-effect suction.
• Coke/Engine Cover: This bodywork flows smoothly from the sidepods toward the rear, tapering into a "coke bottle" shape to maximize aerodynamic efficiency and cooling.
• Cooling Louvres: Strategically placed openings on the engine cover that allow hot air to exit, managing the operating temperatures of the hybrid power unit.

3. Power Unit: The Hybrid Heartbeat

Modern Formula 1 cars are powered by highly advanced hybrid power units. This is not just an engine; it is a complex recovery system that recycles waste energy to produce over 1,000 hp.

The Internal Combustion Engine (ICE)

The core of the car is a 1.6-liter V6 turbocharged engine. Despite its small displacement, it is the most efficient engine in the world, achieving over 50% thermal efficiency (compared to around 30% for a standard road car).

MGU-K: Recovering Energy Under Braking

The MGU-K (Motor Generator Unit - Kinetic) is the component responsible for harvesting energy during deceleration.

• It converts the kinetic energy usually lost as heat during braking into electricity.
• This energy is stored in the battery and provides an additional 160 hp (120 kW) to the rear wheels.
• It plays a dual role by acting as a motor to assist acceleration and a generator to harvest energy.

MGU-H: Eliminating Turbo Lag

The MGU-H (Motor Generator Unit - Heat) is a sophisticated motor connected to the turbocharger.

• It captures waste heat energy from the high-speed exhaust gases spinning the turbo.
• It can use stored electricity to spin the turbocharger manually, effectively eliminating turbo lag entirely for instant power response.

The Energy Store (Battery Pack)

All the electricity captured by the MGU-K and MGU-H is sent to the Energy Store, a specialized lithium-ion battery. The car’s control electronics manage the flow of this power, deciding when to harvest energy and when to deploy it for maximum speed during a race.

4. Suspension: The Link to the Road

The suspension system is the "bridge" between the chassis and the track, vital for maintaining tire contact and managing weight transfer.

Front vs. Rear Suspension Anatomy

• Front Suspension: Connects the front wheels to the monocoque. The Front Corner assembly is critical for steering precision and aerodynamic "clean air" management.
• Rear Suspension: Links the rear wheels to the gearbox and power unit structure. It is the primary factor in finding traction and stability.

Push-rod vs. Pull-rod Systems

F1 teams choose between two main structural designs to actuate the springs and dampers:

• Push-rod: A diagonal rod that pushes upward toward a rocker in the upper part of the chassis. It is generally easier for mechanics to adjust and offers ease of setup.
• Pull-rod: A rod that pulls downward toward a lower chassis point. This is often chosen for aerodynamic benefits, as it lowers the center of gravity and clears airflow paths.

Advanced Handling Components

• Dampers & Springs: Precisely tuned shock absorbers manage the speed of suspension movement, ensuring the tires remain optimally loaded for maximum grip.
• Anti-roll Bars: These minimize body roll during high-speed cornering, keeping the car flatter and more stable.
• Inerters: Specialized mechanical devices that absorb energy from tire oscillations, further refining the car's dynamic stability.

5. Braking System: Stopping Power Redefined

F1 cars can decelerate from 200 mph to zero in under 4 seconds, boasting incredible stopping power thanks to advanced materials.

The Role of Carbon-Carbon

Unlike road cars that use steel, F1 uses carbon-carbon brake discs and pads.

• Operating Temp: These materials offer exceptional friction and heat resistance, performing consistently even at temperatures exceeding 1,000°C.
• Brake Ducts: Meticulously designed ducts feed air to the discs; managing these temperatures is critical, as cold brakes won't bite and overheated brakes will "fade."

Brake-by-Wire (BBW)

The rear braking system is controlled by a sophisticated brake-by-wire system. This electronically manages the interplay between traditional friction braking, engine braking, and energy recovery from the MGU-K to optimize deceleration and balance. Drivers can precisely adjust the front-to-rear brake bias from the steering wheel to suit track conditions.

6. Tires: The Only Contact with the Track

The tires are the sole interface between the car and the asphalt, making their performance critical to race strategy.

• Pirelli Sole Supplier: Pirelli provides a range of slick compounds (Hard, Medium, Soft) for dry conditions, and Intermediate and Wet tires for damp or rainy conditions.
• Compound Selection: Teams strategically choose tire compounds based on track characteristics and expected temperatures, as each compound offers a different balance of grip and durability.
• Regulations: Strict rules govern tire usage, including mandatory pit stops where drivers must use at least two different dry compounds during a race.

7. Steering Wheel: The Driver's Command Center

Far more than just a wheel, the F1 steering wheel is a highly complex, multi-functional control panel.

• Shifting & Clutch Paddles: Located behind the wheel, these allow for lightning-fast gear changes and precise starts from a standstill.
• Buttons and Rotary Switches: These control everything from brake bias, differential settings, and engine modes to the pit lane speed limiter and DRS activation.
• The LCD Screen: A high-resolution display provides real-time data on tire temperatures, lap deltas, radio communication, and ERS battery levels.

8. Chassis and Weight Distribution: The Foundation of Balance

The overall chassis design (distinct from the monocoque, encompassing the entire car's structure) and weight distribution are meticulously engineered to optimize handling.

• Minimum Weight: F1 cars have a minimum weight limit (currently 800kg in 2025). Teams strategically place ballast to achieve the optimal center of gravity.
• Balance: Weight distribution is typically slightly rear-biased (approximately 46% front, 54% rear) to maximize traction from the powerful rear wheels.
• Weight Transfer: During acceleration, braking, and cornering, weight dynamically shifts. Engineers constantly work to manage these transfers for maximum tire performance and aerodynamic stability.

9. Safety Features: Protecting the Pilots

While pushing the limits of speed, Formula 1 prioritizes driver safety above all else.

• Halo Device: A three-pronged titanium structure that protects the driver's head from debris and impacts. It can withstand forces equivalent to a double-decker bus. The Halo Fairing is the aerodynamic casing around the halo, shaped to minimize drag.
• Rear Impact Structure: A mandatory deformable structure at the very rear of the car designed to absorb impact energy in rear-end collisions.
• Front Crash Structures: Integrated into the nose and front wing assembly, these are designed to crush progressively and absorb energy in a frontal impact.
• Fire Suppression Systems: Automatically activated systems spray fire retardant foam around the monocoque and engine in the event of a fire.
• HANS Device: The Head and Neck Support device significantly reduces the risk of severe neck injuries during impacts.
• Driver Equipment: Fireproof suits, helmets, and other gear provide crucial protection in extreme situations.
• Rear View Mirrors: Crucial for awareness, the mirrors (and their supporting Mirror Stays) are strategically positioned to provide visibility while adhering to strict aerodynamic regulations.
• Headset: Drivers communicate with their teams via a Headset, allowing for constant strategizing and information exchange during races.

The Ever-Evolving Machine

The modern Formula 1 car is a testament to relentless innovation and engineering excellence. Each component, from the smallest sensor to the mighty hybrid power unit, is a product of cutting-edge technology and countless hours of development. As regulations evolve and technology advances, the F1 car will continue to transform, forever pushing the boundaries of what's possible on four wheels. The synergy between these intricate components is what creates the breathtaking spectacle of Formula 1—a true symphony of speed and precision.
